| Size: | 6 |
| DN: | 25 |
| Size: | 16 |
| Inch: | 1 |
| working pressure [bar]: | 200 |
| Thread + standard: | BSP female DIN 3852 |
| Thread [GA]: | 1 |

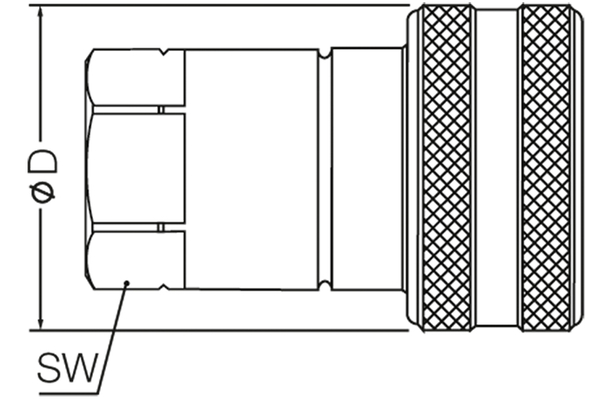

| Outer Ø sleeve [mm]: | 60,0 |
| Length sleeve [mm]: | 105,8 |
| SW [mm]: | 41 |
| Wrench size connection side sleeve: | 41 |
| SW1 [mm]: | 41 |
| l/min at ΔP=2 bar: | 189 |
| Material: | AISI 316; (1.4436) |
| Material support ring: | PTFE |

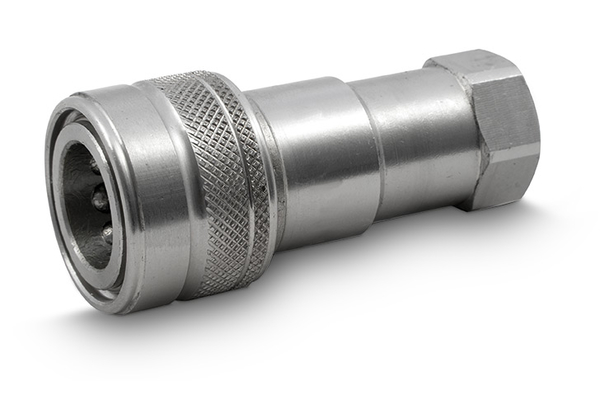

| Product title long: | Series ST-HNV-VA female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
