ST-HNV16NPT20M

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	250
  Thread + standard:	NPT female thread DIN 3852
  Thread [GA]:	1

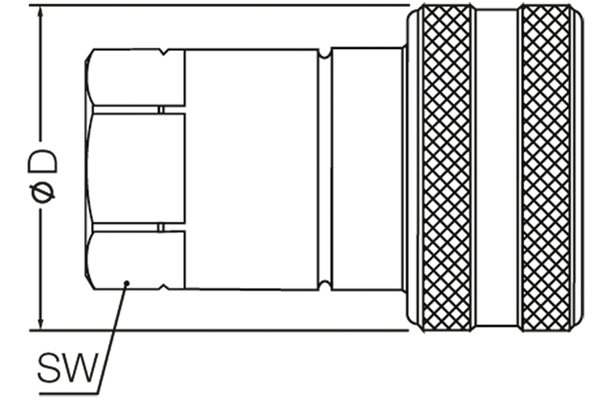

  Outer Ø sleeve [mm]:	60,0
  Length sleeve [mm]:	105,8
  SW [mm]:	41
  Wrench size connection side sleeve:	41
  burst pressure plug uncoupled [bar]:	100
  burst pressure coupled [bar]:	100
  burst pressure sleeve uncoupled [bar]:	110
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	189
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series ST-HNV female coupling.
  Product title short:	female coupling
