ST-HNV12BSP16S

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/4
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung

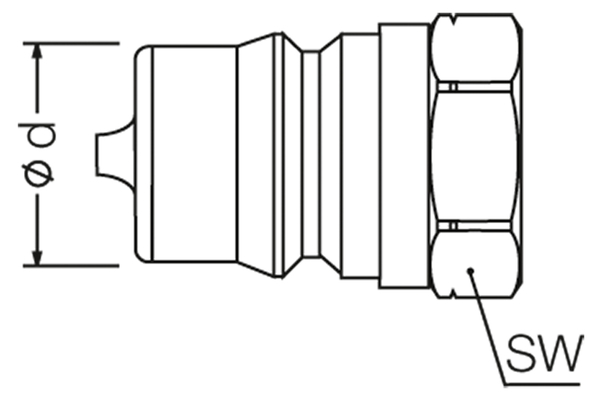

  Outer Ø plug [mm]:	31,4
  Length plug [mm]:	57,0
  SW [mm]:	34
  Wrench size connection side sleeve:	34
  burst pressure plug uncoupled [bar]:	100
  burst pressure coupled [bar]:	120
  burst pressure sleeve uncoupled [bar]:	130
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	106
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE

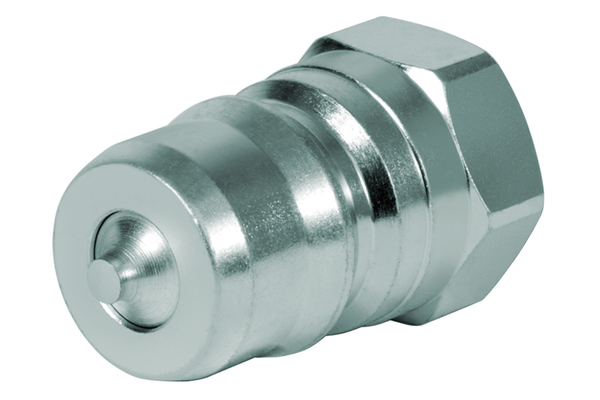

  Product title long:	Series ST-HNV male coupling.
  Product title short:	male coupling
