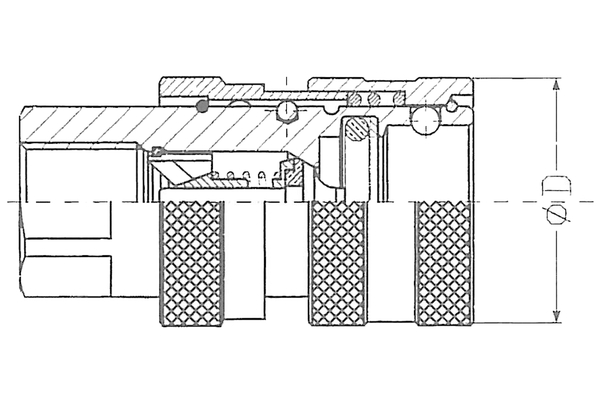

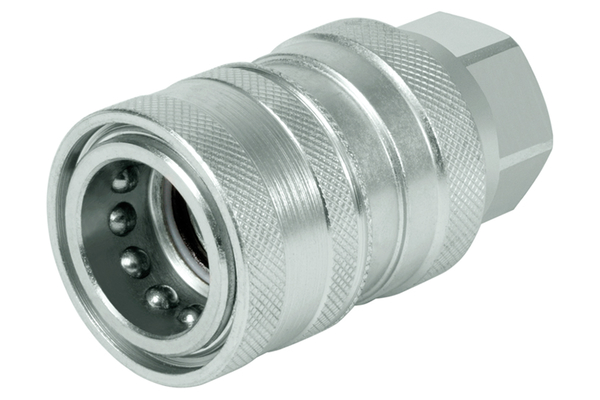

ST-SV female coupling

Detail

Size
1
2
3
DN
6
10
12
Size
4
06
08
Inch
1/4
3/8
1/2
working pressure [bar]
350
300
300
Thread + standard
BSP female DIN 3852
BSP female DIN 3852
BSP female DIN 3852
Thread [GA]
1/4
3/8
1/2
Outer Ø sleeve [mm]
27
33
38
Length sleeve [mm]
50,0
59,5
66,0
SW [mm]
19
24
27
SW1 [mm]
19
24
27
l/min at ΔP=2 bar
15
50
75
Quantity


Product info

Accessories

dust protection
