Product info
-
Technical data

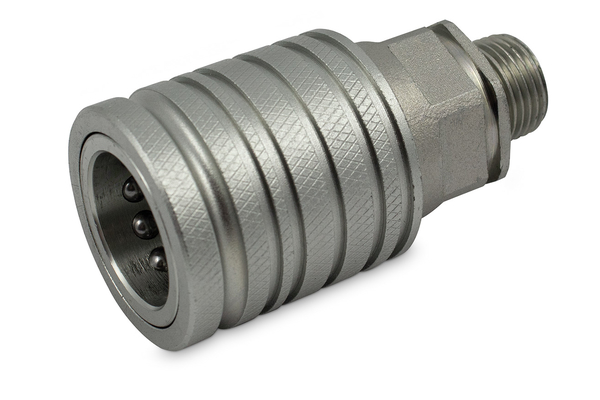

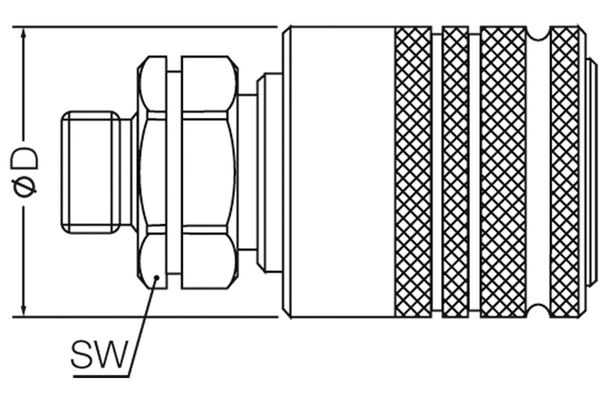

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 300 Thread + standard: BSP female DIN 3852 Thread [GA]: 3/8 Pipe Ø R [mm]: IND_Oberflaechenbeschichtung Outer Ø sleeve [mm]: 31,0 Length sleeve [mm]: 67 SW [mm]: 22 burst pressure coupled [bar]: 1300 burst pressure sleeve uncoupled [bar]: 1500 SW1 [mm]: 22 l/min at ΔP=2 bar: 23 Form of the sealing valve: poppet Material: steel gem. EN10277 Material support ring: PTFE Product title long: Series ST2 female coupling. Product title short: female coupling
