ST2-NV16M08S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	metric female thread DIN 3852
  Thread [GA]:	M16x1,5
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung

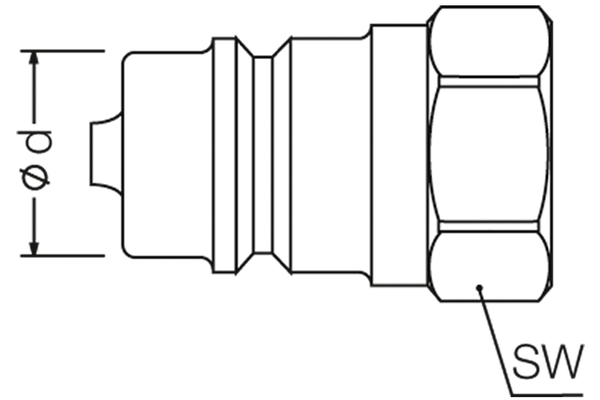

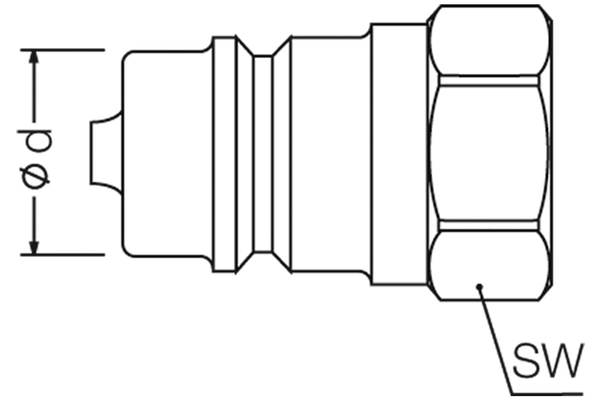

  Outer Ø plug [mm]:	17,3
  Length plug [mm]:	49,0
  Wrench size connection side plug:	22
  SW [mm]:	22
  burst pressure plug uncoupled [bar]:	1300
  burst pressure coupled [bar]:	1300
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Form of the sealing valve:	poppet
  Material support ring:	PTFE

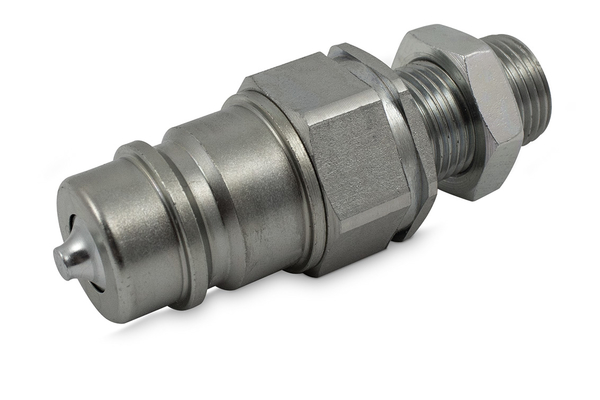

  Product title long:	Series ST2 male coupling.
  Product title short:	male coupling
