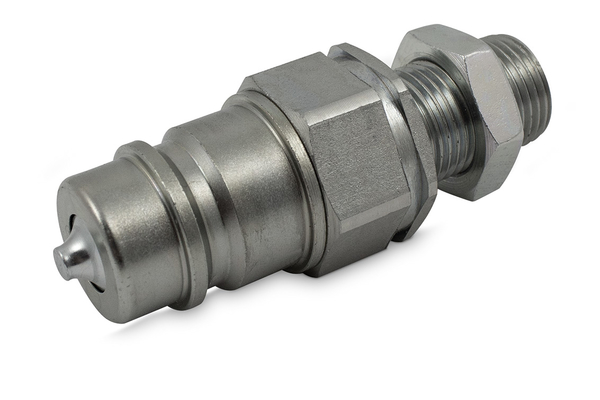

ST2-NV5-12CELS06-05S

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	male thread CE-Bulkhead light Series, DIN 3861
  Thread [GA]:	M12x1,5
  Pipe Ø R [mm]:	06L
  Outer Ø plug [mm]:	17,3
  Length plug [mm]:	62,8
  Wrench size connection side plug:	22
  burst pressure plug uncoupled [bar]:	1300
  burst pressure coupled [bar]:	1300
  GL [mm]:	26
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series ST2 male coupling.
  Product title short:	male coupling
