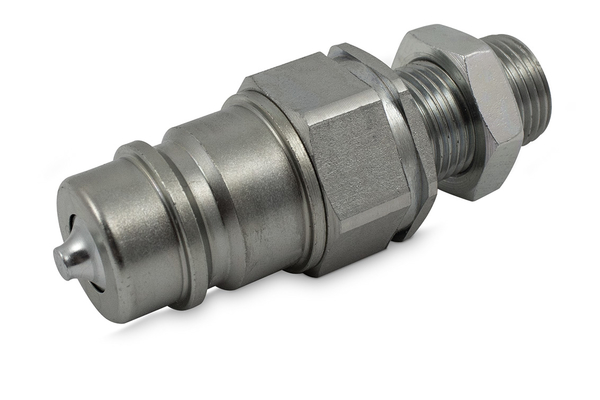

ST2-NV6-20CESS12-08S
Plug-in coupling series ST2 (male)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	CE Bulkhead-male thread heavy Seriess, DIN 3861
  Thread [GA]:	M20x1,5
  Pipe Ø R [mm]:	12S

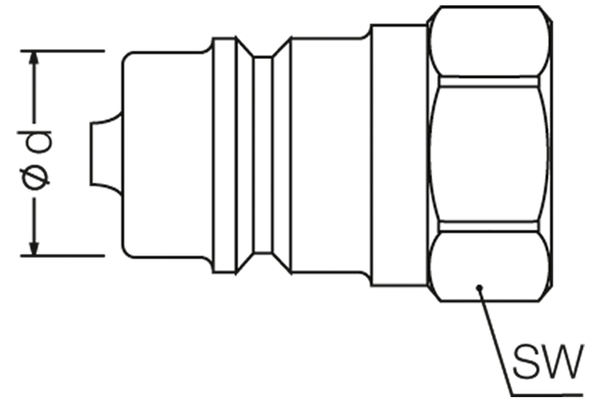

  Outer Ø plug [mm]:	17,3
  Length plug [mm]:	63,8
  Wrench size connection side plug:	22
  SW [mm]:	22
  burst pressure plug uncoupled [bar]:	1300
  burst pressure coupled [bar]:	1300
  SW1 [mm]:	22
  l/min at ΔP=2 bar:	23
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Material Casing:	Steel
  Material sealing:	NBR 85 Shore
  Material support ring:	PTFE
  Product title long:	Series ST2 male coupling.
  Product title short:	male coupling
  Standard:	ISO 7241-1A
  Surface:	Zn-Fe (Chrom III)
  Temperature range [°C]:	-25°C / +100°C
