ST3-NV5-18CELS12-12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	300

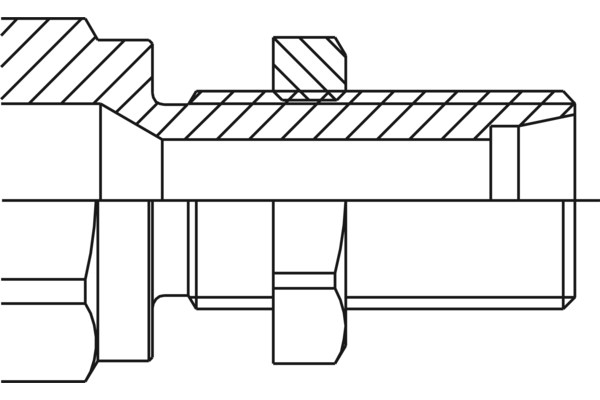

  Thread + standard:	male thread CE-Bulkhead light Series, DIN 3861
  Thread [GA]:	M18x1,5
  Pipe Ø R [mm]:	10L
  Outer Ø plug [mm]:	20,5
  Length plug [mm]:	72,0
  Wrench size connection side plug:	27
  SW [mm]:	27
  burst pressure plug uncoupled [bar]:	950
  burst pressure coupled [bar]:	1100
  l/min at ΔP=2 bar:	50
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series ST3 male coupling.
  Product title short:	male coupling
