ST3-NV6-22CESS14-12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	300
  Thread + standard:	CE Bulkhead-male thread heavy Seriess, DIN 3861
  Thread [GA]:	M22x1,5
  Pipe Ø R [mm]:	14S

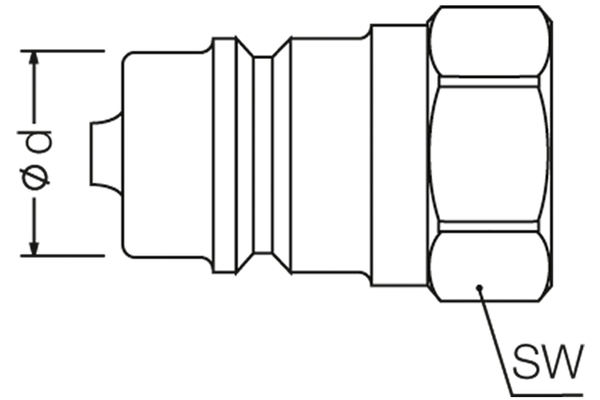

  Outer Ø plug [mm]:	20,5
  Length plug [mm]:	80,5
  Wrench size connection side plug:	30
  SW [mm]:	30
  burst pressure plug uncoupled [bar]:	950
  burst pressure coupled [bar]:	1100
  GL [mm]:	29
  l/min at ΔP=2 bar:	45
  Form of the sealing valve:	poppet
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	Series ST3 male coupling.
  Product title short:	male coupling
