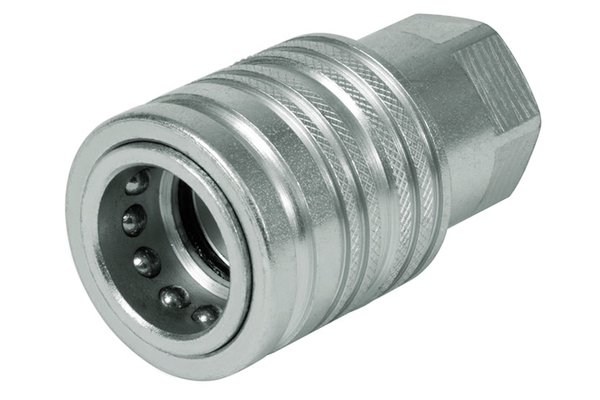

ST4-PV0-08BSP20M

Product info

• Technical data

  Size:	4
  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	BSP Innengewinde DIN 3852, mit O-Ring Port
  Thread [GA]:	1/2
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung
  Outer Ø sleeve [mm]:	46,0
  Length sleeve [mm]:	92.8
  SW [mm]:	36
  Wrench size connection side sleeve:	36
  burst pressure coupled [bar]:	1100
  burst pressure sleeve uncoupled [bar]:	1400
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	106
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	.
