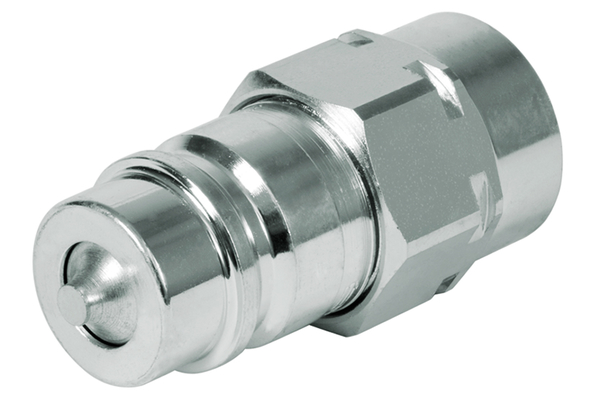

ST4-NV0-12BSP20S

Product info

• Technical data

  Size:	4
  DN:	19
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	BSP Innengewinde DIN 3852, mit O-Ring Port
  Thread [GA]:	3/4
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung
  Outer Ø plug [mm]:	29,1
  Length plug [mm]:	67,5
  SW [mm]:	36
  burst pressure plug uncoupled [bar]:	1200
  burst pressure coupled [bar]:	1100
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	106
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	.
