VC-BC-IG1/2BSP12M

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	150
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/2"

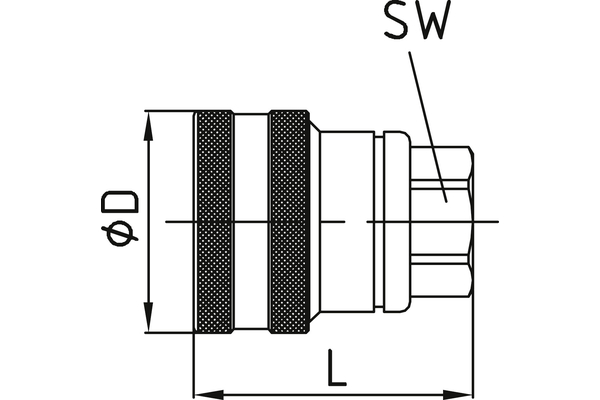

  Outer Ø sleeve [mm]:	44,0
  Length sleeve [mm]:	56,0
  SW [mm]:	27
  Ø D [mm]:	44,0
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	42
  Form of the sealing valve:	Flat Poppet Type
  Material:	steel
  Material support ring:	PTFE

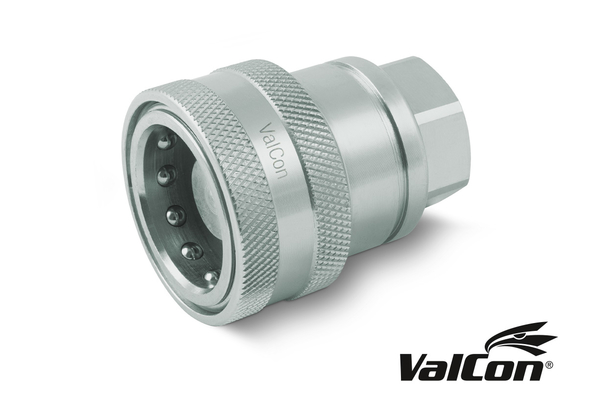

  Product title long:	Series VC-BC female coupling.
  Product title short:	VC-BC brake line coupling
