VC-BC16-20CELS10-12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	150
  Thread + standard:	male thread CE-Bulkhead light Series, DIN 3861
  Thread [GA]:	M16x1,5

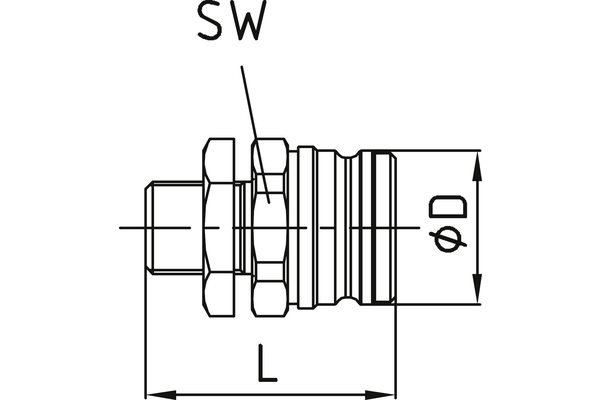

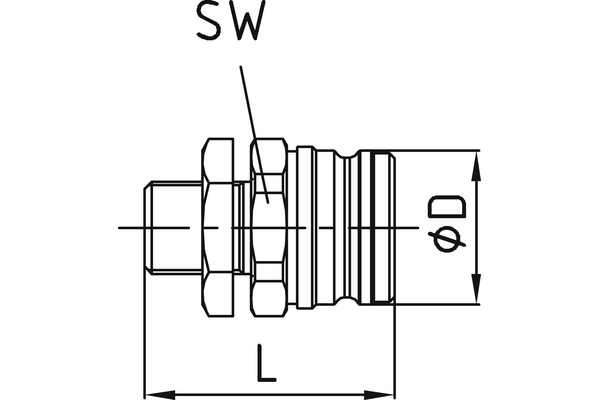

  Outer Ø plug [mm]:	30,0
  Length plug [mm]:	52,0
  SW [mm]:	32
  Ø D [mm]:	30,0
  SW1 [mm]:	32
  l/min at ΔP=2 bar:	42
  L1 [mm]:	93
  Form of the sealing valve:	Flat Poppet Type
  Material:	steel
  Material support ring:	PTFE

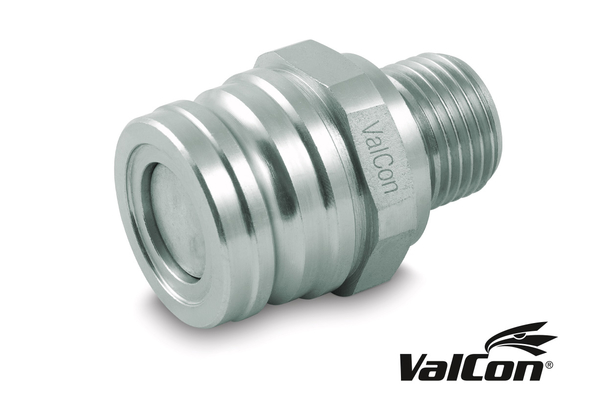

  Product title long:	Series VC-BC male coupling.
  Product title short:	VC-BC brake line coupling
