VC-ISO-B-IG3/8-10S

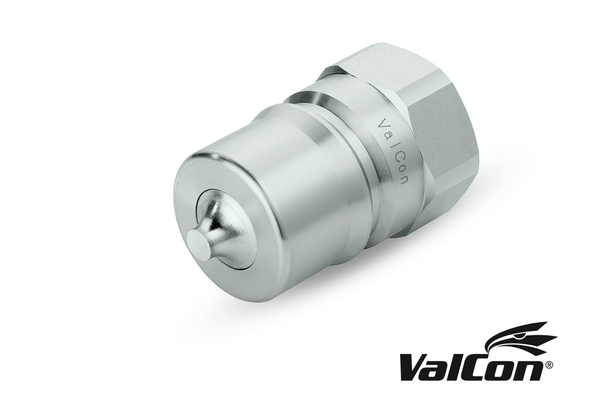

Valcon® Plug-in coupling series VC-ISO-B male

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	280
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8"

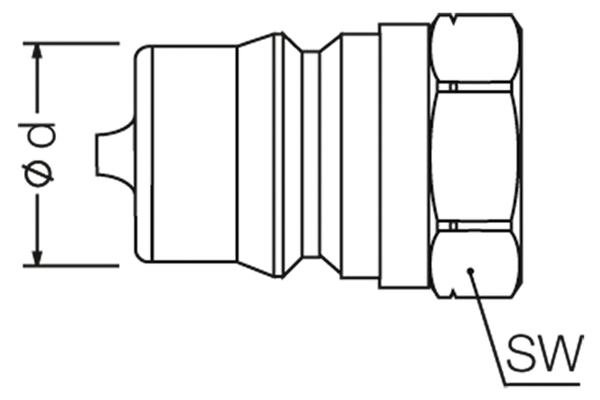

  Outer Ø plug [mm]:	19,0
  Length plug [mm]:	40,0
  SW [mm]:	24
  SW1 [mm]:	24
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Male
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	400
  Resistance against white rust [h]:	200
  Standard:	ISO 7241-1B
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +120°C
