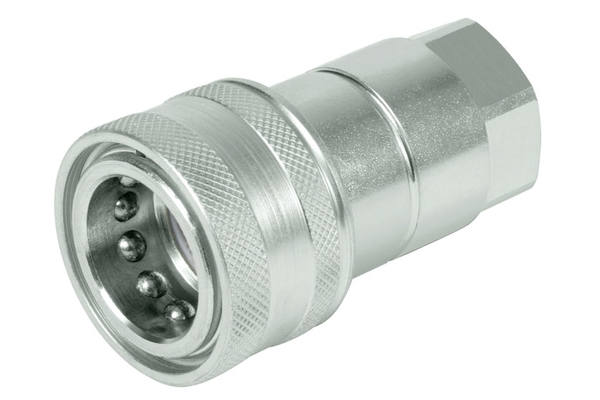

VC-NV-IG3/8-10M
Valcon® Plug-in coupling series VC-NV female

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8"
  Outer Ø sleeve [mm]:	34,0
  Length sleeve [mm]:	60,5
  SW [mm]:	24
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	28
  L1 [mm]:	80,2
  Applications:	General application (e.g. agriculture)
  Female or male coupling:	Female
  Material:	C-steel, nitrified
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	Series VC-NV female coupling.
  Product title short:	female coupling
  Resistance against red rust [h]:	200
  Resistance against white rust [h]:	400
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +100°C
