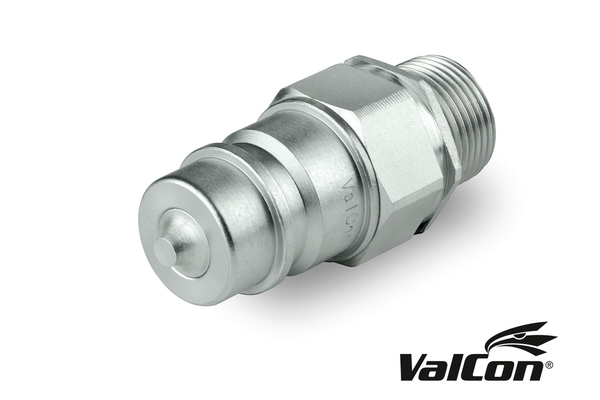

VC-PP-CEL10-12S
Valcon® Plug-in coupling series VC-PP Male

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	Metric male-thread ISO 8434-1-L
  Thread [GA]:	M16x1,5

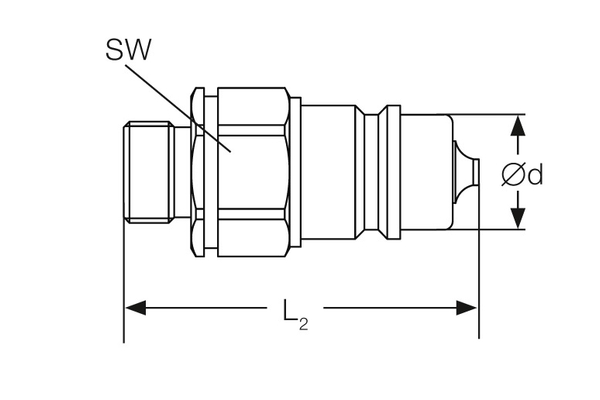

  Outer Ø plug [mm]:	20,6
  Length plug [mm]:	58,5
  SW [mm]:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	50
  Applications:	General application (e.g. agriculture)
  Female or male coupling:	Female
  Material:	high resistant steel
  Material Casing:	Stahl
  Material sealing:	NBR
  Resistance against red rust [h]:	200
  Resistance against white rust [h]:	400
  Standard:	ISO 7241-1A
  Surface:	Chrome III
  Temperature range [°C]:	-20°C up to +100°C
