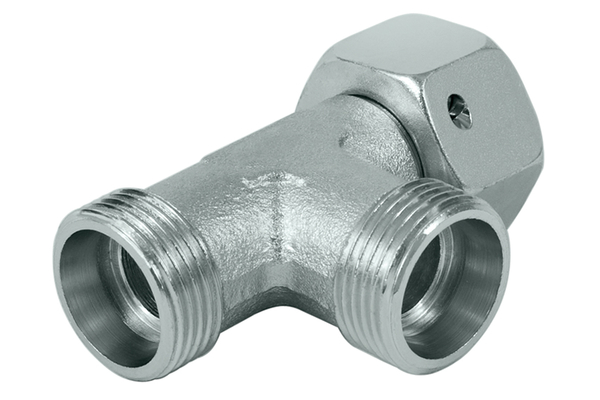

RV10EL/O-S/KÖ

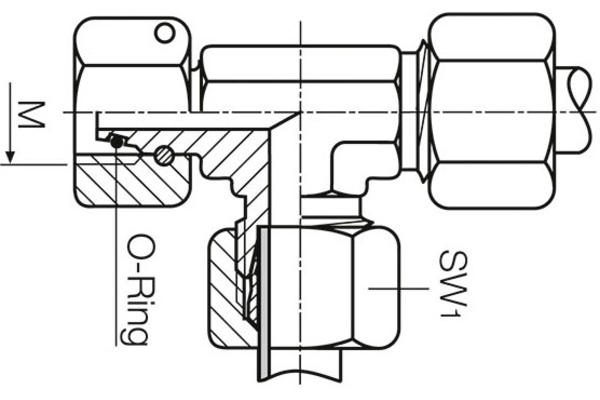

Adjustable screw connection EL/O/body

Product info

• Technical data

  working pressure [bar]:	630
  burst pressure [bar]:	2520
  Pipe Ø R [mm]:	10
  Thread [G1]:	M18x1,5
  Thread [G2]:	M18x1,5
  Thread [G3]:	M18x1,5
  Series:	S
  O-Ring 1:	7,5x1,5
  SW1 [mm]:	17
  SW2 [mm]:	22
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	L-shape
  Description:	Adjustable L-screw connection, preassembled, O-ring sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
