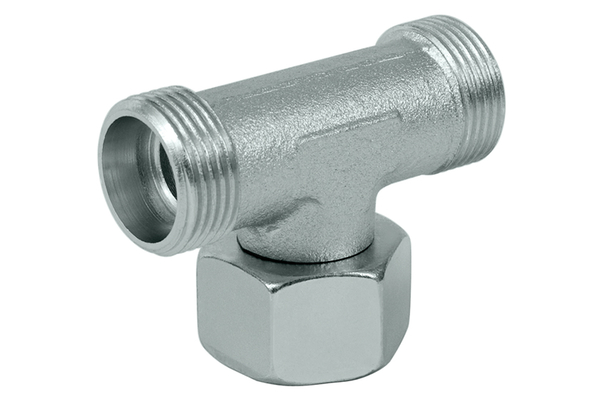

RV18ET/O-L/KÖ
Adjustable screw connection ET-O

Product info

• Technical data

  working pressure [bar]:	315
  Pipe Ø R [mm]:	18
  Thread [G1]:	M26x1,5
  Thread [G2]:	M26x1,5
  Thread [G3]:	M26x1,5
  Series:	L
  O-Ring 1:	15x2
  SW1 [mm]:	24
  SW2 [mm]:	32
  Thread [G]:	M26x1,5
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	T-shape
  Description:	Adjustable T-screw connection, preassembled, O-Ring sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
