RV38EVL-S/KÖ
Adjustable screw connection EVL

Product info

• Specifications

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	38
  Thread [G1]:	M52x2
  Thread [G2]:	M52x2
  Thread [G3]:	M52x2
  Series:	S
  SW1 [mm]:	50
  SW2 [mm]:	60
  Thread [G]:	M52x2
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	L-shape

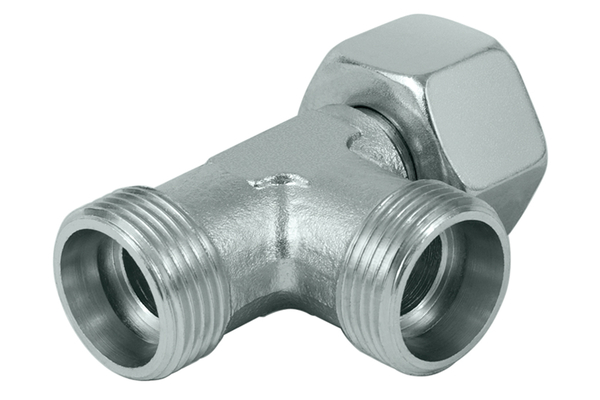

  Description:	Adjustable L-screw connection
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
