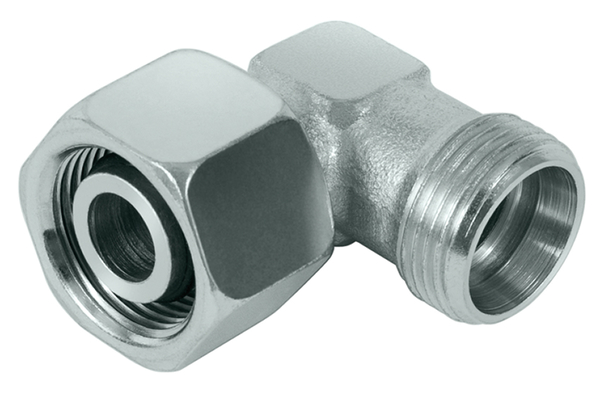

RV10EW/O-L/KÖ
Adjustable screw connection EW/O

Product info

• Technical data

  working pressure [bar]:	315
  burst pressure [bar]:	1260
  Pipe Ø R [mm]:	10
  Thread [G1]:	M 16x1,5
  Thread [G2]:	M 16x1,5
  Series:	L
  O-Ring 1:	7,5 x 1,5
  SW1 [mm]:	14
  SW2 [mm]:	19
  Thread [G]:	M 16x1,5
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Angle 90°
  Description:	Adjustable angle screw connection with O-ring seal
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
