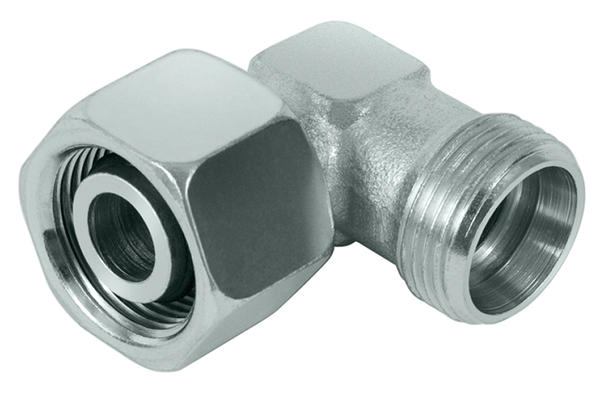

Adjustable union EW/O/body

Similar image

Adjustable angle-screw connection with 24°-conical nipple and o-ring, metric

To accessories

Detail

Art. No.
RV06EW/O-L/KÖ
%
SALE
RV08EW/O-L/KÖ
%
SALE
RV10EW/O-L/KÖ
%
SALE
RV12EW/O-L/KÖ
%
SALE
RV15EW/O-L/KÖ
%
SALE
RV18EW/O-L/KÖ
%
SALE
RV22EW/O-L/KÖ
%
SALE
RV28EW/O-L/KÖ
%
SALE
RV35EW/O-L/KÖ
%
SALE
RV42EW/O-L/KÖ
%
SALE
RV06EW/O-S/KÖ
%
SALE
RV08EW/O-S/KÖ
%
SALE
RV10EW/O-S/KÖ
%
SALE
RV12EW/O-S/KÖ
%
SALE
RV14EW/O-S/KÖ
%
SALE
RV16EW/O-S/KÖ
%
SALE
RV20EW/O-S/KÖ
%
SALE
RV25EW/O-S/KÖ
%
SALE
RV30EW/O-S/KÖ
%
SALE
RV38EW/O-S/KÖ
%
SALE
working pressure [bar]
315
315
315
315
315
315
160
160
160
160
630
630
630
630
630
400
400
400
400
315
burst pressure [bar]
1260
1260
1260
1260
1260
1260
640
640
640
640
2520
2520
2520
2520
2520
1600
1600
1600
1600
1260
Pipe Ø R [mm]
6
8
10
12
15
18
22
28
35
42
6
8
10
12
14
16
20
25
30
38
Thread [G1]
M 12x1,5
M 14x1,5
M 16x1,5
M 18x1,5
M 22x1,5
M 26x1,5
M 30x2
M 36x2
M 45x2
M 52x2
M 14x1,5
M 16x1,5
M 18x1,5
M 20x1,5
M 22x1,5
M 24x1,5
M 30x2
M 36x2
M 42x2
M 52x2
Thread [G2]
M 12x1,5
M 14x1,5
M 16x1,5
M 18x1,5
M 22x1,5
M 26x1,5
M 30x2
M 36x2
M 45x2
M 52x2
M 14x1,5
M 16x1,5
M 18x1,5
M 20x1,5
M 22x1,5
M 24x1,5
M 30x2
M 36x2
M 42x2
M 52x2
Series
L
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
S
S
S
O-Ring 1
4,0 x 1,5
6,0 x 1,5
7,5 x 1,5
9,0 x 1,5
12,0 x 2,0
15,0 x 2,0
20,0 x 2,0
26,0 x 2,0
32,0 x 2,5
38,0 x 2,5
4,0 x 1,5
6,0 x 1,5
7,5 x 1,5
9,0 x 1,5
10,0 x 2,0
12,0 x 2,0
16,3 x 2,4
20,3 x 2,4
25,3 x 2,4
33,3 x 2,4
SW1 [mm]
12
12
14
17
19
24
27
36
41
50
12
14
17
17
19
24
27
36
41
50
SW2 [mm]
14
17
19
22
27
32
36
41
520
60
17
19
22
24
27
30
36
46
50
60
Thread [G]
M 12x1,5
M 14x1,5
M 16x1,5
M 18x1,5
M 22x1,5
M 26x1,5
M 30x2
M 36x2
M 45x2
M 52x2
M 14x1,5
M 16x1,5
M 18x1,5
M 20x1,5
M 22x1,5
M 24x1,5
M 30x2
M 36x2
M 42x2
M 52x2
Quantity


Product info

  • Technical data
    Connection type 1: Metric 24°
    Connection type 2: Metric 24°
    Construction form: Angle 90°
    Description: Adjustable angle screw connection with O-ring seal
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free
