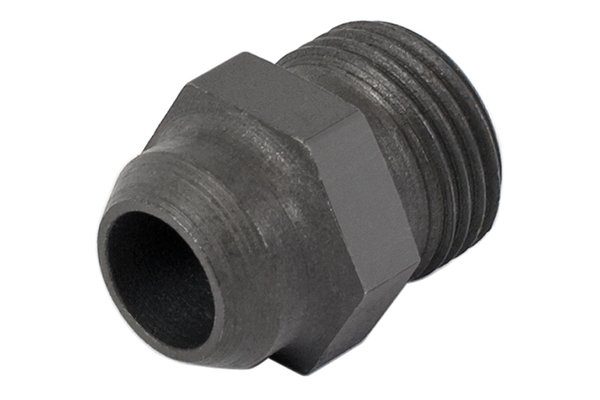

Weld union AS/body

Detail

working pressure [bar]
315
315
315
315
160
630
630
400
400
400
400
315
burst pressure [bar]
1260
1260
1260
1260
640
2520
2520
1600
1600
1600
1600
1260
Pipe Ø R [mm]
10
12
15
18
35
8
12
16
20
25
30
38
Thread [G1]
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M45x2
M16x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Series
L
L
L
L
L
S
S
S
S
S
S
S

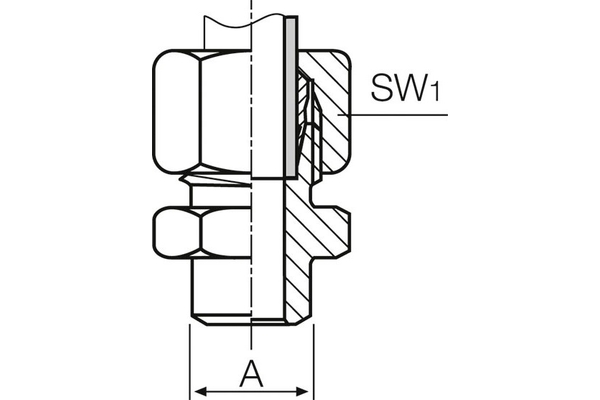

SW1 [mm]
17
19
22
27
46
17
22
27
32
41
46
55
Thread [G]
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M45x2
M16x1,5
M20x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Quantity


Product info

  • Technical data
    Connection type 1: Metric 24°
    Connection type 2: welded connection
    Construction form: Straight
    Description: Straight welded screw connection
    Material: ST-l
    Surface: zinc plated, chrom 6-free
