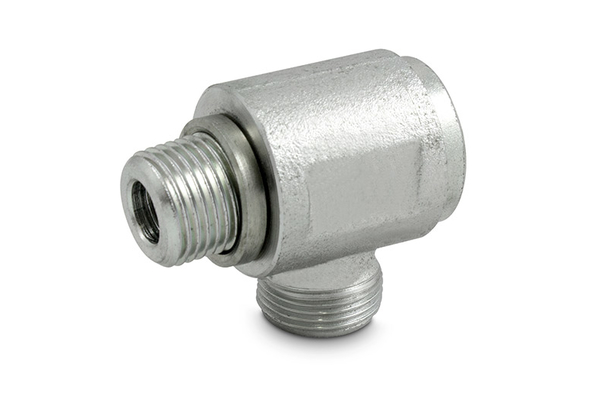

Throttlefree swivel union DSVW/body (metric)

Detail

working pressure [bar]
250
250
250
250
100
400
400
burst pressure [bar]
1000
1000
1000
1000
400
1600
1600
Pipe Ø R [mm]
8
10
12
15
22
6
8
Thread [G1]
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M30x2
M14x1,5
M16x1,5
Thread [G2]
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M26x1,5
M12x1,5
M14x1,5
Series
L
L
L
L
L
S
S

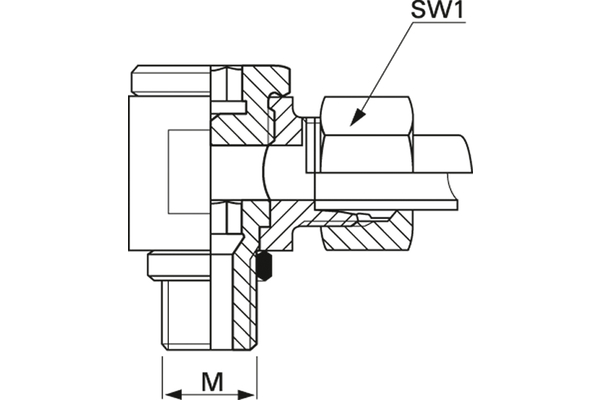

SW1 [mm]
22
22
27
30
41
22
22
SW2 [mm]
6
8
10
12
17
6
8
Quantity


Product info

  • Technical data
    Connection type 1: Metric 24°
    Connection type 2: Metric
    Construction form: Angle 90°
    Description: Thrustless angular swivel screw connection
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free
