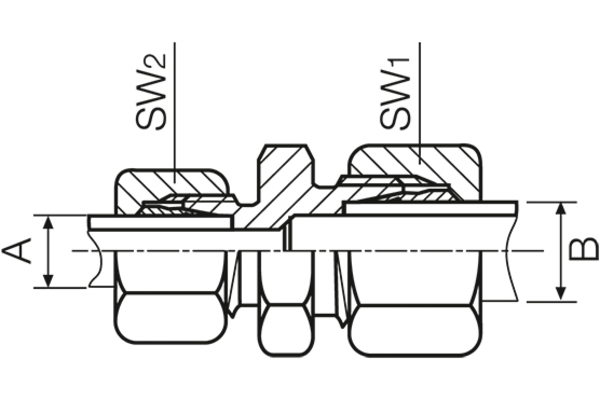

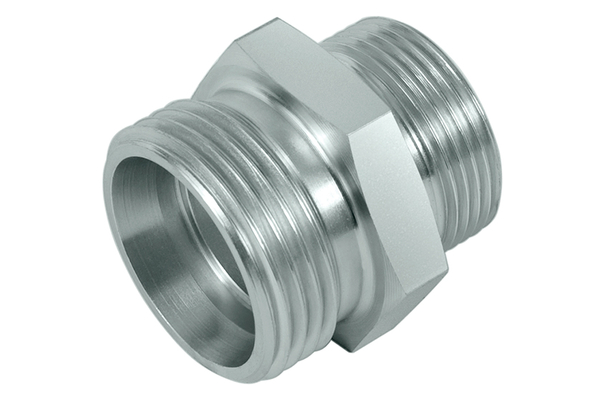

RV12GR08-S/KÖ
Connection screw GR

Product info

• Technical data

  working pressure [bar]:	630
  burst pressure [bar]:	2520
  Pipe Ø R [mm]:	12/8
  Pipe-Ø [R1] [mm]:	12
  Pipe-Ø [R2] [mm]:	8
  Thread [G1]:	M20x1,5
  Thread [G2]:	M16x1,5
  Series:	S
  SW1 [mm]:	22
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Straight reducer
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
