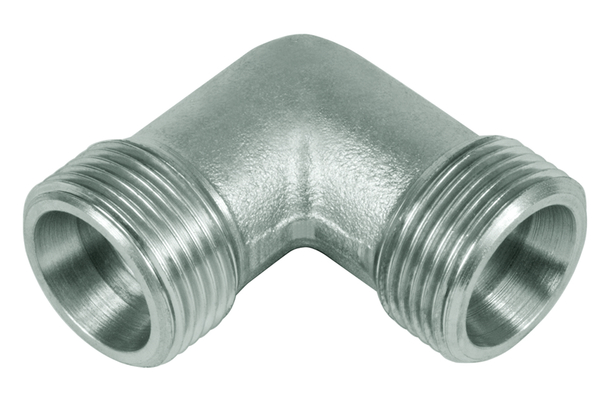

Angle union W/body

Similar image

Angle union

To accessories

Detail

Art. No.
RV04W-LL/KÖ
%
SALE
RV05W-LL/KÖ
%
SALE
RV06W-LL/KÖ
%
SALE
RV08W-LL/KÖ
%
SALE
RV06W-L/KÖ
%
SALE
RV08W-L/KÖ
%
SALE
RV10W-L/KÖ
%
SALE
RV12W-L/KÖ
%
SALE
RV15W-L/KÖ
%
SALE
RV18W-L/KÖ
%
SALE
RV22W-L/KÖ
%
SALE
RV28W-L/KÖ
%
SALE
RV35W-L/KÖ
%
SALE
RV42W-L/KÖ
%
SALE
RV06W-S/KÖ
%
SALE
RV08W-S/KÖ
%
SALE
RV10W-S/KÖ
%
SALE
RV12W-S/KÖ
%
SALE
RV14W-S/KÖ
%
SALE
RV16W-S/KÖ
%
SALE
RV20W-S/KÖ
%
SALE
RV25W-S/KÖ
%
SALE
RV30W-S/KÖ
%
SALE
RV38W-S/KÖ
%
SALE
working pressure [bar]
100
100
100
100
315
315
315
315
315
315
160
160
160
160
630
630
630
630
630
400
400
400
400
315
burst pressure [bar]
400
400
400
400
1260
1260
1260
1260
1260
1260
640
640
640
640
2520
2520
2520
2520
2520
1600
1600
1600
1600
1260
Pipe Ø R [mm]
4
5
6
8
6
8
10
12
15
18
22
28
35
42
6
8
10
12
14
16
20
25
30
38
Thread [G1]
M8x1
M10x1
M10x1
M12x1
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Thread [G2]
M8x1
M10x1
M10x1
M12x1
M12x1,5
M14x1,5
M16x1,5
M18x1,5
M22x1,5
M26x1,5
M30x2
M36x2
M45x2
M52x2
M14x1,5
M16x1,5
M18x1,5
M20x1,5
M22x1,5
M24x1,5
M30x2
M36x2
M42x2
M52x2
Series
LL
LL
LL
LL
L
L
L
L
L
L
L
L
L
L
S
S
S
S
S
S
S
S
S
S
SW1 [mm]
9
9
9
12
12
12
14
17
19
24
27
36
41
50
12
14
17
17
19
24
27
36
41
50
SW2 [mm]
10
12
12
14
Thread [G]
M18x1,5
Quantity


Product info

  • Technical data
    Connection type 1: Metric 24°
    Connection type 2: Metric 24°
    Construction form: Angle 90°
    Description: Angle screw connection
    Material: ST-l
    Resistance against red rust [h]: 1000
    Resistance against white rust [h]: 500
    Surface: zinc plated, chrom 6-free

Accessories

Easy identification of the thread connection with the identification panel AW5-40.

Practical tip

The cutting ring preassembly should be done using our hardened preassembled union - RV..VM L / S.
