Art. No.: RV10D/G-L/KÖ
List number: 12789410

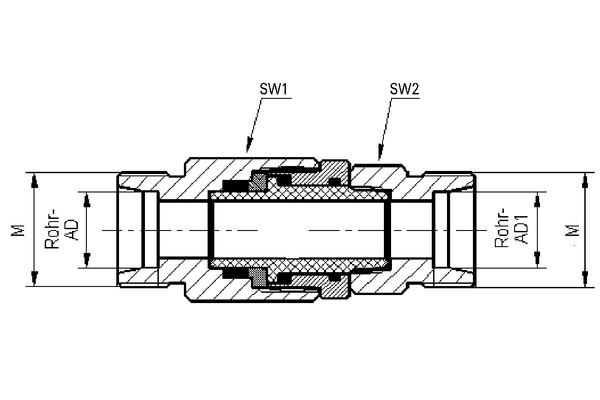

Straight screw connection, rotating, only body, metric
| working pressure [bar]: | mind. 10 - max. 350 |
| Pipe Ø R [mm]: | 10 |
| Thread [G1]: | M16x1,5 |
| Thread [G2]: | M16x1,5 |
| Series: | L |
| SW1 [mm]: | 30 |
| SW2 [mm]: | 19 |
| Thread [G]: | M16x1,5 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Metric 24° |
| Construction form: | Straight |
| Description: | Straight rotating ball screwed connection |
| Material: | ST-l |
| Surface: | zinc plated, chrom 6-free |
| Temperature range [°C]: | -30°C - +95°C |
Reserve technical changes.
