Art. No.: RV25D/W-SM/KÖ/ED
List number: 12793110

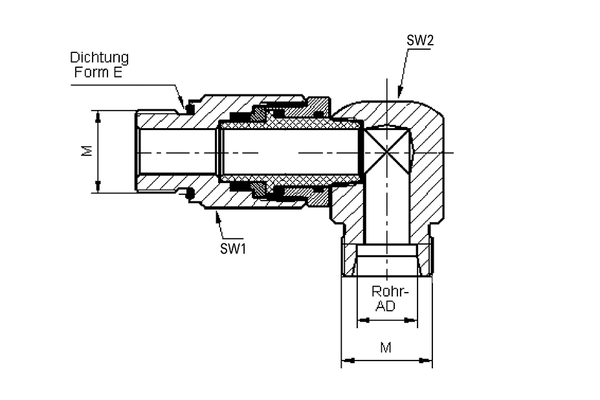

Angle screw-in union, rotating, only body, metric
| working pressure [bar]: | mind. 10 - max. 350 |
| Pipe Ø R [mm]: | 25 |
| Thread [G1]: | M36x2 |
| Thread [G2]: | M33x2 |
| Series: | S |
| SW1 [mm]: | 41 |
| SW2 [mm]: | 40 |
| Connection type 1: | Metric 24° |
| Connection type 2: | Metric |
| Construction form: | Angle 90° |
| Description: | Rotatable ball-threaded angle screw-in fitting, metric - soft-sealing |
| Material: | ST-l |
| Surface: | zinc plated, chrom 6-free |
| Temperature range [°C]: | -30° to +95°C |
Reserve technical changes.
