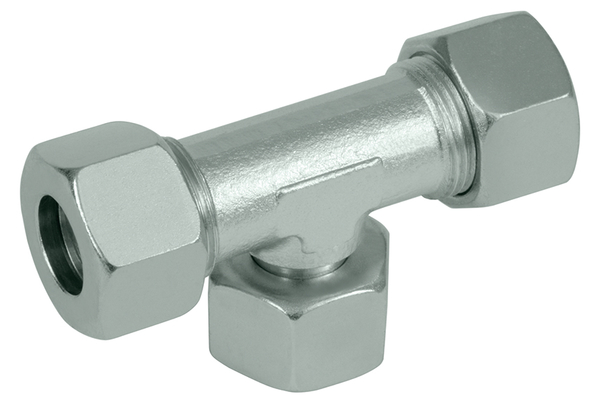

RV08EVT-S
Adjustable screw connection EVT

Product info

• Technical data

  working pressure [bar]:	630
  burst pressure [bar]:	2520
  Pipe Ø R [mm]:	8
  Thread [G1]:	M16x1,5
  Thread [G2]:	M16x1,5
  Thread [G3]:	M16x1,5
  Series:	S

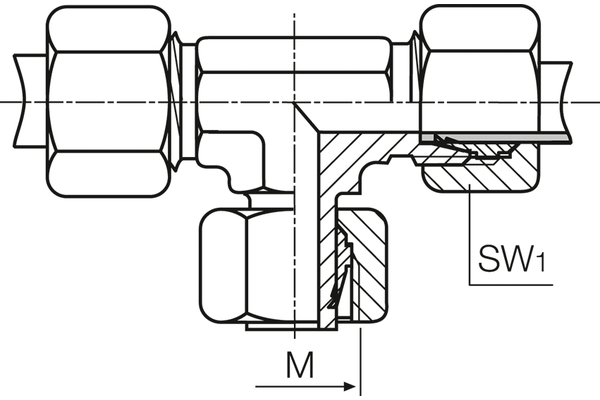

  SW1 [mm]:	14
  SW2 [mm]:	19
  Thread [G]:	M16x1,5
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	T-shape
  Description:	Adjustable T-screw connection
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
