RV10S10L-GVO
Reducing connector - GVO

Product info

• Technical data

  working pressure [bar]:	315
  Pipe Ø R [mm]:	10
  Pipe-Ø [R1] [mm]:	10
  Pipe-Ø [R2] [mm]:	10
  Thread [G1]:	M18x1,5
  Thread [G2]:	M16x1,5
  Series:	S/L

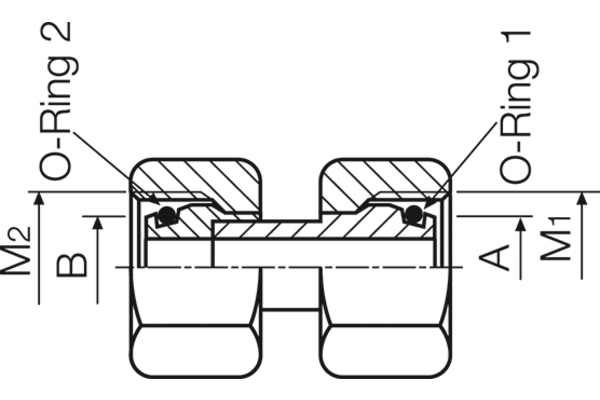

  O-Ring 2:	7,5 x 1,5
  O-Ring 1:	7,5 x 1,5
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight

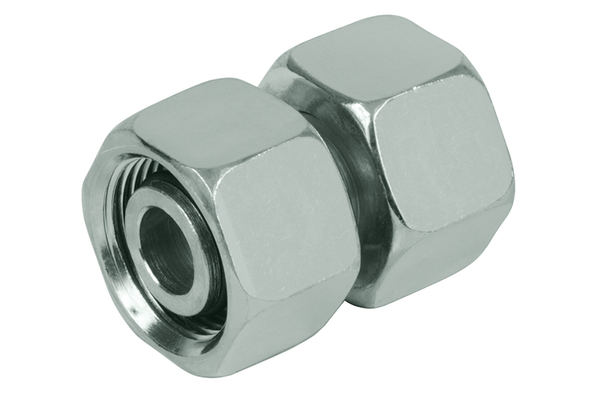

  Description:	Double connector, pre-assembled on both sides with O-ring
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
