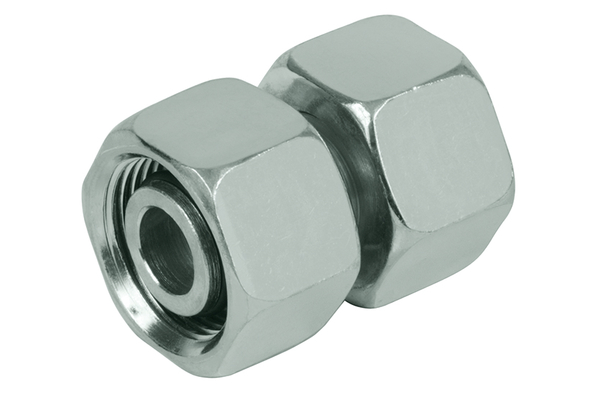

RV16S16S-GVO
Reducing connector - GVO

Product info

• Technical data

  working pressure [bar]:	350
  burst pressure [bar]:	1400
  Pipe Ø R [mm]:	16
  Pipe-Ø [R1] [mm]:	16
  Pipe-Ø [R2] [mm]:	16
  Thread [G1]:	M24x1,5
  Thread [G2]:	M24x1,5
  Series:	S

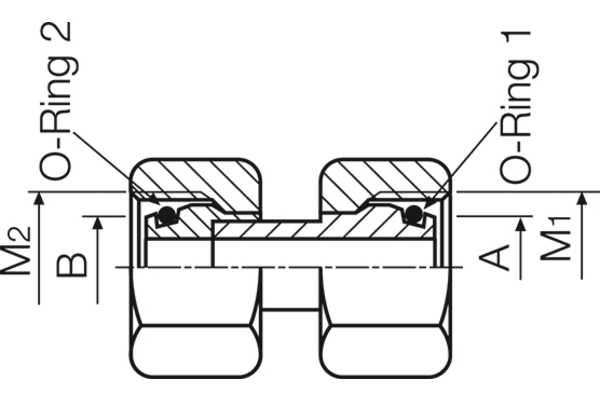

  O-Ring 2:	12,0 x 2,0
  O-Ring 1:	12,0 x 2,0
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Double connector, pre-assembled on both sides with O-ring
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
