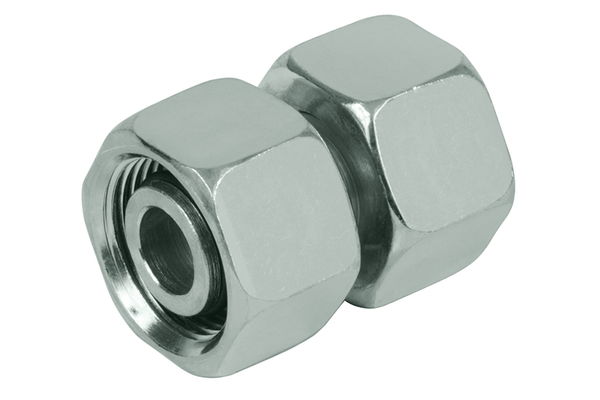

RV25S38S-GVO
Reducing connector - GVO

Product info

• Technical data

  working pressure [bar]:	280
  burst pressure [bar]:	1120
  Pipe Ø R [mm]:	25/38
  Pipe-Ø [R1] [mm]:	25
  Pipe-Ø [R2] [mm]:	38
  Thread [G1]:	M36x2
  Thread [G2]:	M52x2
  Series:	S

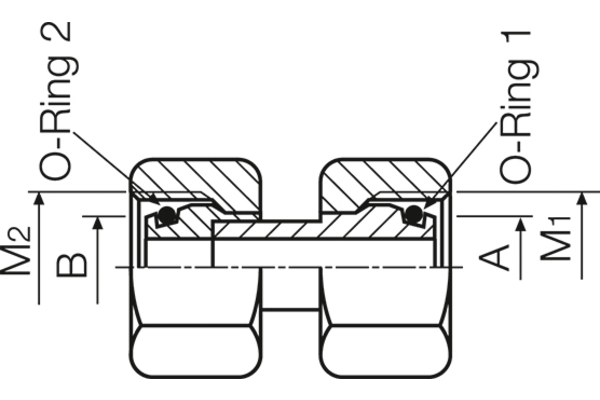

  O-Ring 2:	33,3 x 2,4
  O-Ring 1:	20,3 x 2,4
  Connection type 1:	Metric 24°
  Connection type 2:	Metric 24°
  Construction form:	Straight
  Description:	Double connector, pre-assembled on both sides with O-ring
  Material:	ST-l
  Surface:	zinc plated, chrom 6-free
