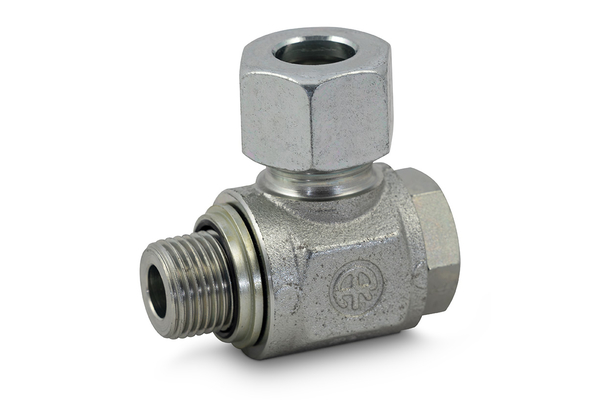

RV25WHO-SR
Swivel screw-fitting WHO (inch)

Product info

• Technical data

  working pressure [bar]:	250
  burst pressure [bar]:	1000
  Pipe Ø R [mm]:	25
  Thread [G1]:	M36x2
  Thread [G2]:	G 1"
  Series:	S

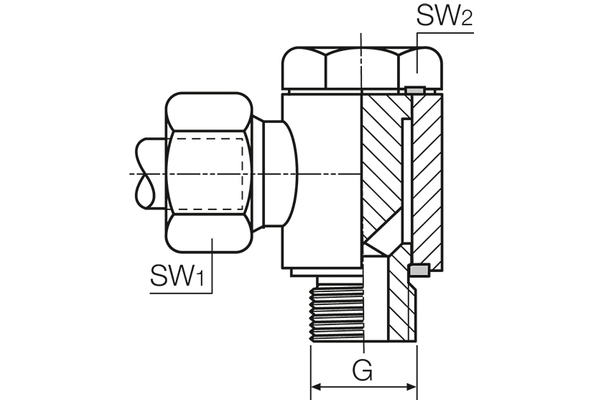

  SW1 [mm]:	50
  SW2 [mm]:	41
  SW3 [mm]:	46
  Connection type 1:	Metric 24°
  Connection type 2:	Imperial
  Construction form:	Angle 90°
  Description:	High pressure angle swivel fitting
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
