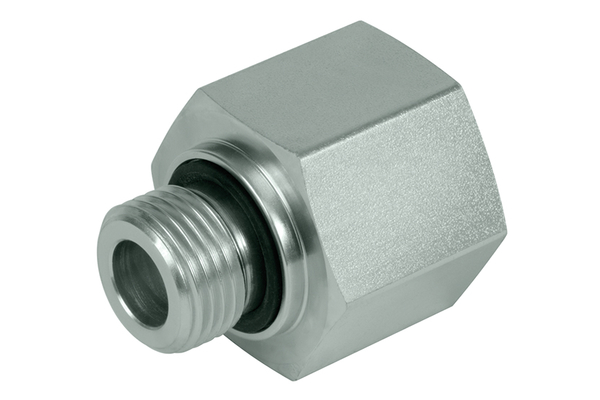

RV3/4X1RI-ED
Reducer and extension union BSP-BSP

Product info

• Specifications

  working pressure [bar]:	400
  burst pressure [bar]:	1600

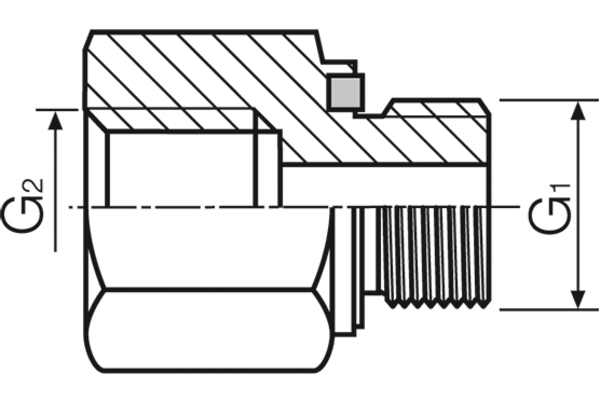

  Thread [G1]:	G 3/4"
  Thread [G2]:	G 1"
  SW1 [mm]:	41
  Connection type 1:	BSP
  Connection type 2:	BSP
  Construction form:	Straight
  Description:	Reducer and extension union, BSP - soft sealing
  Material:	ST-l
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Surface:	zinc plated, chrom 6-free
