Art. No.: C148130444
List number: 65280010

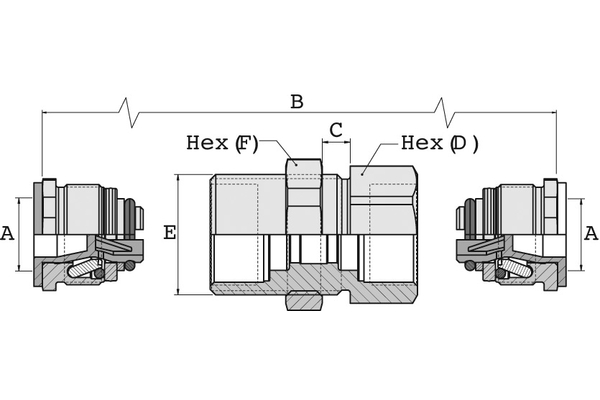

Double coupling - bulkhead mounting. The couplings of Series 813 for bulkhead mounting. M male threads are available in sizes 1/4" up to 1".
| working pressure [bar]: | 350 |
| Series: | 813 |
| F: | 25 |
| D: | 22 |
| E: | M20x1,5 |
| B: | 42,8 |
| C: | 0-18 |
| A: | 10,0 |
| Connection type 1: | Couplings. 1/4" |
| Material: | hardened sT-l |
| Surface: | CrIII |
| Temperature range and resistance [°C]: | -30°C to +100°C |
Reserve technical changes.
