C148301616

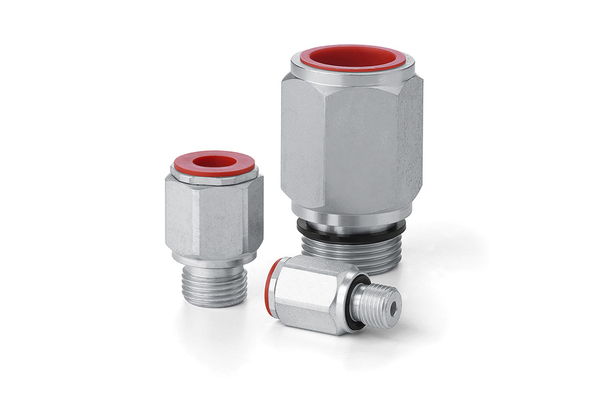

WEO series 830

Product info

• Technical data

  working pressure [bar]:	350
  Series:	830

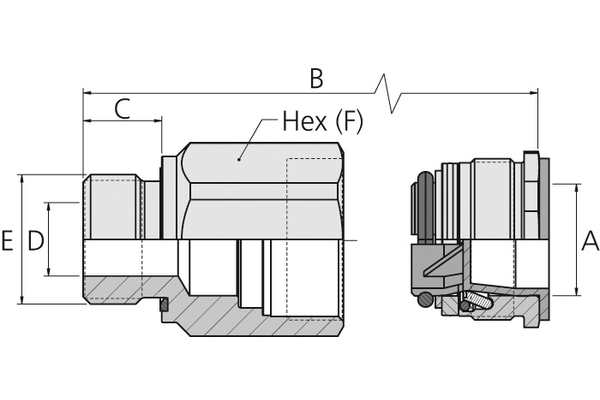

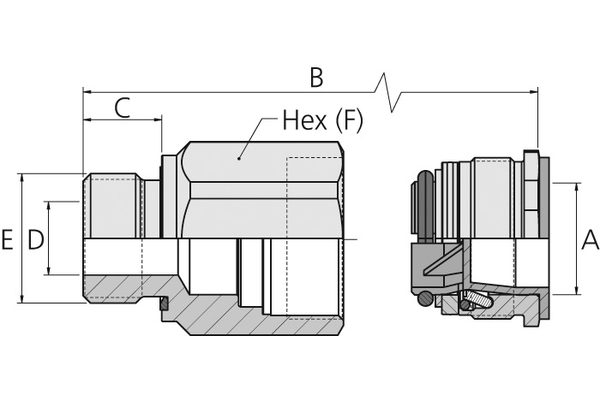

  F:	41
  D:	21,0
  E:	1"
  B:	69,0
  C:	18,0
  A:	30,0
  Connection type 1:	Coupling, 1" G male thread
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
