C147140604
WEO series 714

Product info

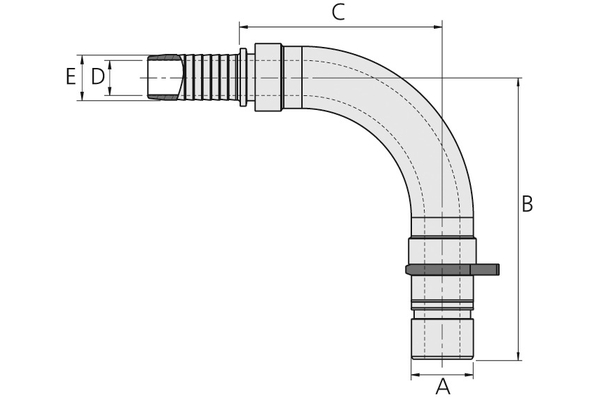

• Technical data

  working pressure [bar]:	350
  Series:	714
  D:	4,5
  E:	1/4" (6,9mm)
  B:	56,0
  C:	34,0
  A:	13,0
  Connection type 1:	Nipple, 3/8"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
