C147140606
WEO series 714

Product info

• Technical data

  working pressure [bar]:	350
  Series:	714

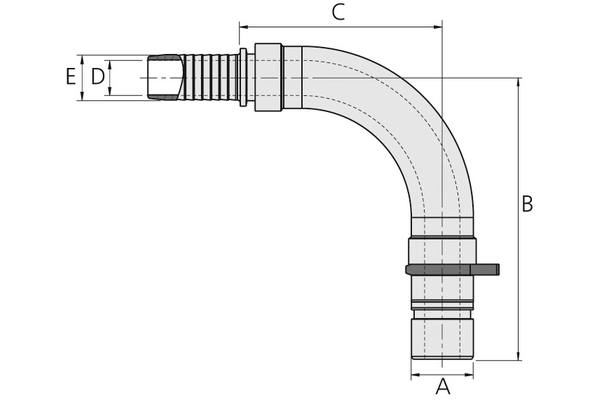

  D:	7,0
  E:	3/8" (10,1mm)
  B:	60,0
  C:	39,0
  A:	13,0
  Connection type 1:	Nipple, 3/8"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
