C147100403
WEO series 710

Product info

• Technical data

  working pressure [bar]:	350
  Series:	710

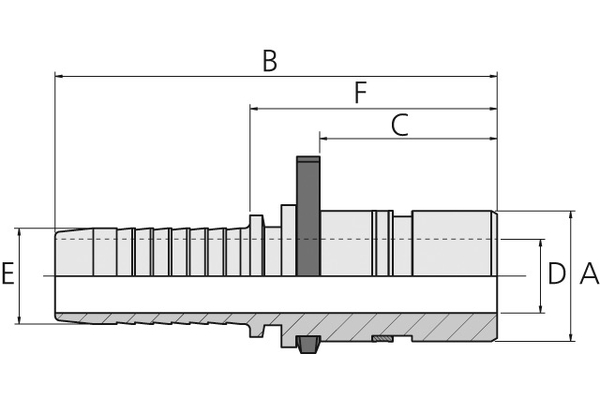

  F:	29,2
  D:	2,8
  E:	3/16" (5,25mm)
  B:	54,5
  C:	19,0
  A:	10,0
  Connection type 1:	Nipple, 1/4"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
