C147101208

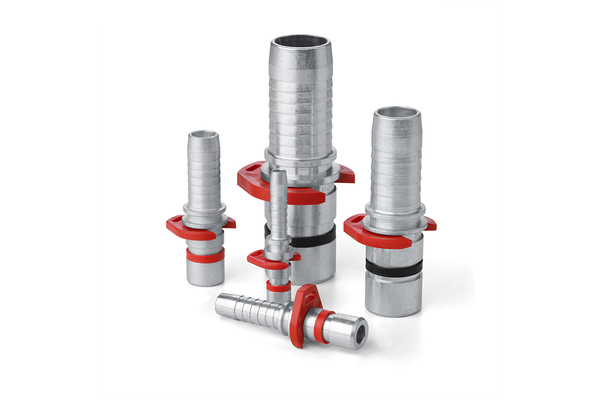

WEO series 710

Product info

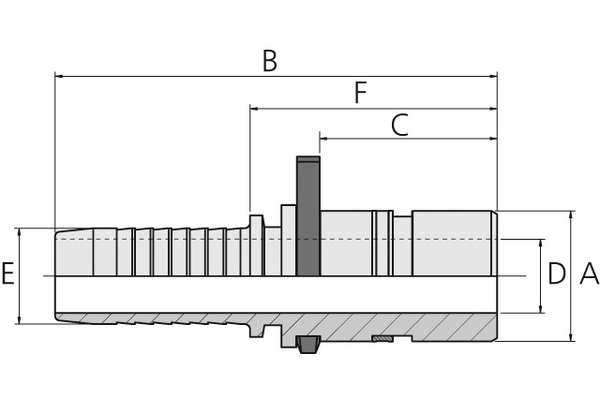

• Technical data

  working pressure [bar]:	350
  Series:	710
  F:	42,5
  D:	9,5
  E:	1/2" (13,6mm)
  B:	73,5
  C:	31,0
  A:	23,0
  Connection type 1:	Nipple, 3/4"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
