C147101210

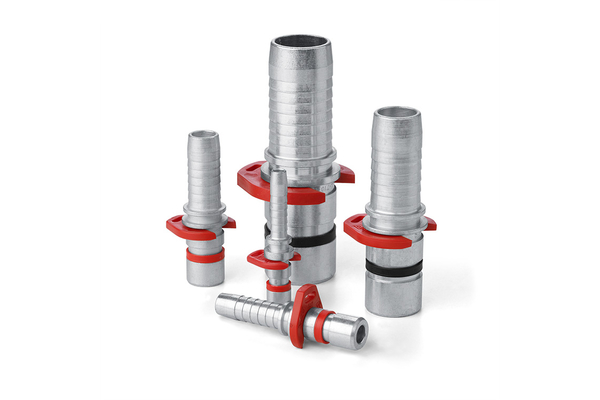

WEO series 710

Product info

• Technical data

  working pressure [bar]:	350
  Series:	710

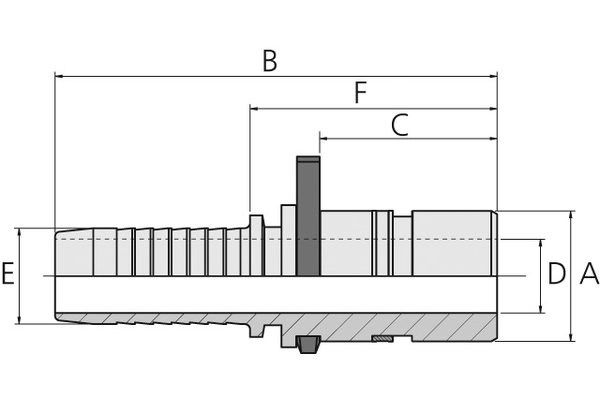

  F:	43,3
  D:	12,0
  E:	5/8" (16.8 mm)
  B:	77,5
  C:	31,0
  A:	23,0
  Connection type 1:	Nipple, 3/4"
  Material:	hardened sT-l
  Surface:	CrIII
  Temperature range and resistance [°C]:	-30°C to +100°C
