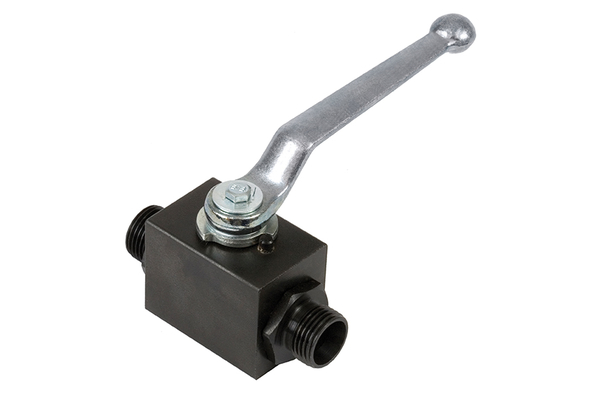

KHB-16S-12
Ball valve, block design

Product info

• Technical data

  DN:	12
  working pressure [bar]:	500
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M24x1.5
  Pipe Ø R [mm]:	16
  L [mm]:	87
  Lever length [R] [mm]:	112
  B [mm]:	45
  H1 [mm]:	17
  H [mm]:	40
  GL [mm]:	14
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
