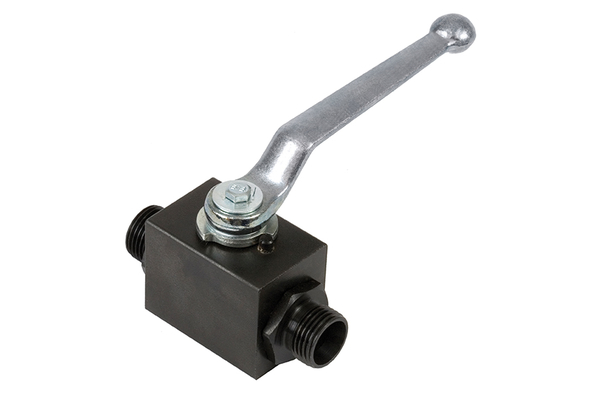

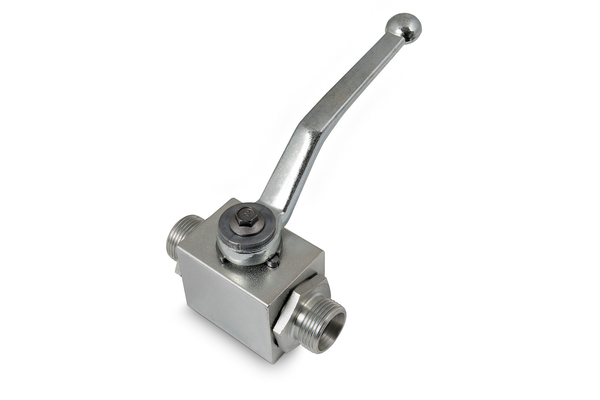

2-way ball valves, pipe connection, heavy series

Similar image
Similar image

2/2-way version

To accessories

Detail

Art. No.
KHB-8S-4
%
SALE
KHB-10S-6
%
SALE
KHB-12S-8
%
SALE
KHB-14S-10
%
SALE
KHB-16S-12
%
SALE
KHB-20S-16
%
SALE
KHB-25S-20
%
SALE
KHB-30S-25
%
SALE
KHB-38S-25
%
SALE
DN
4
6
8
10
12
16
20
25
32/25
working pressure [bar]
500
500
500
500
500
400
400
400
400
Thread + standard
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
solderless fittings, DIN 2353, heavy series, ISO 8434-1
Thread [GA]
M16x1,5
M18x1.5
M20x1.5
M22x1.5
M24x1.5
M30x2
M36x2
M42x2
M52x2
Pipe Ø R [mm]
8
10
12
14
16
20
25
30
38
L [mm]
73
73
77
81
87
90
107
120
134
Lever length [R] [mm]
76
76
100
100
112
166
187
187
187
B [mm]
20
20
30
35
45
45
55
55
55
H1 [mm]
10
10
14,5
14,5
17
20
24
26
26
H [mm]
25
25
35
35
40
45
55
60
60
GL [mm]
12
12
12
14
14
16
18
20
22
Quantity


Product info

  • Technical data
    Material Casing: steel
    Material switching ball: Stahl, hartverchromt
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Please contact us for construction manuals (e.g. mounting holes)

Accessories

spare parts - such as operating lever and sealings you might find in the chapter accessories.

Practical tip

High pressure ball valves with floating ball guide:  2/2-way and 3/2-way ball valves with a floating ball may only be switched without pressure.
