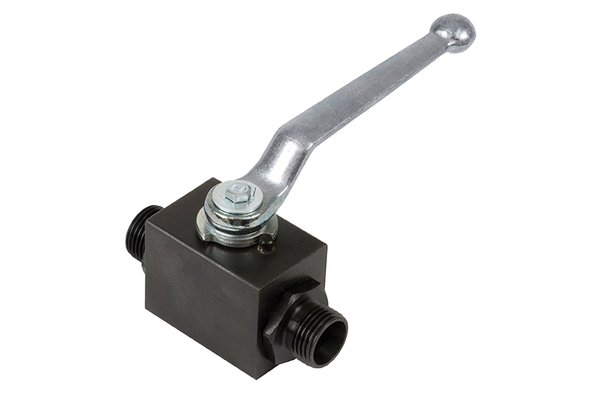

KHB-20S-16
Ball valve, block design

Product info

• Technical data

  DN:	16
  working pressure [bar]:	400
  Thread + standard:	solderless fittings, DIN 2353, heavy series, ISO 8434-1
  Thread [GA]:	M30x2
  Pipe Ø R [mm]:	20
  L [mm]:	90
  Lever length [R] [mm]:	166
  B [mm]:	45
  H1 [mm]:	20
  H [mm]:	45
  GL [mm]:	16
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
