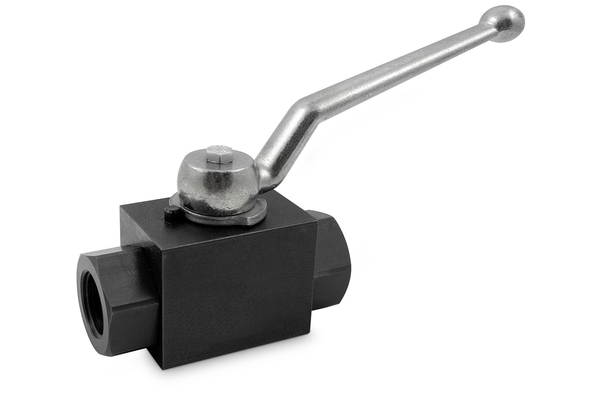

2-way ball valves, pipe connection, BSP female thread

Similar image
Similar image

2/2-way version

To accessories

Detail

Art. No.
KHB-NPT14I-6
%
SALE
KHB-NPT38I-10
%
SALE
KHB-NPT12I-12
%
SALE
KHB-NPT34I-20
%
SALE
KHB-NPT1I-25
%
SALE
KHB-NPT114I-25
%
SALE
DN
6
10
12
20
25
32/25
working pressure [bar]
500
500
500
400
400
400
Thread + standard
NPT-female thread, DIN ANSI B1.20.1-1983
NPT-female thread, DIN ANSI B1.20.1-1983
NPT-female thread, DIN ANSI B1.20.1-1983
NPT-female thread, DIN ANSI B1.20.1-1983
NPT-female thread, DIN ANSI B1.20.1-1983
NPT-female thread, DIN ANSI B1.20.1-1983
Thread [GA]
1/4 - 18 NPT
3/8 - 18 NPT
1/2 - 14 NPT
3/4 - 14 NPT
1 - 11.1/2 NPT
1.1/4 - 11.1/2 NPT
Pipe Ø R [mm]
-
-
-
-
-
-
L [mm]
69
73
82
93
115
134
Lever length [R] [mm]
76
100
112
187
187
187
B [mm]
20
30
35
45
55
55
H1 [mm]
10
14,5
17
24
26
26
H [mm]
25
35
40
55
60
60
GL [mm]
10
10,3
13,6
14,1
16,8
17,3
Quantity


Product info

  • Technical data
    Material Casing: steel
    Material switching ball: Stahl, hartverchromt
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Please contact us for construction manuals (e.g. mounting holes)

Accessories

spare parts - such as operating lever and sealings you might find in the chapter accessories.

Practical tip

High pressure ball valves with floating ball guide:  2/2-way and 3/2-way ball valves with a floating ball may only be switched without pressure.
