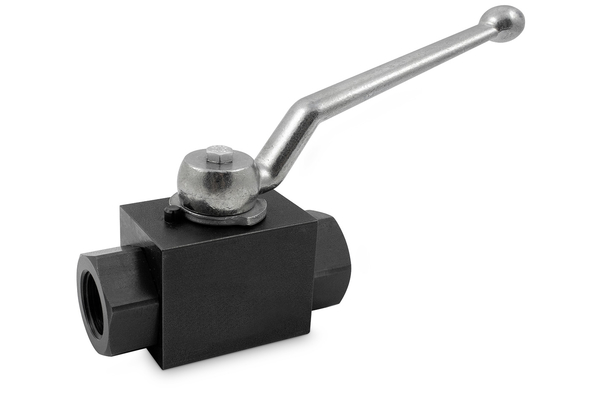

KHB-NPT12I-12
Ball valve, block design

Product info

• Technical data

  DN:	12
  working pressure [bar]:	500
  Thread + standard:	NPT-female thread, DIN ANSI B1.20.1-1983
  Thread [GA]:	1/2 - 14 NPT
  Pipe Ø R [mm]:	-
  L [mm]:	82
  Lever length [R] [mm]:	112
  B [mm]:	35
  H1 [mm]:	17
  H [mm]:	40
  GL [mm]:	13,6
  Material Casing:	steel
  Material switching ball:	Stahl, hartverchromt
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR
  Product title short:	2-way ball valves
