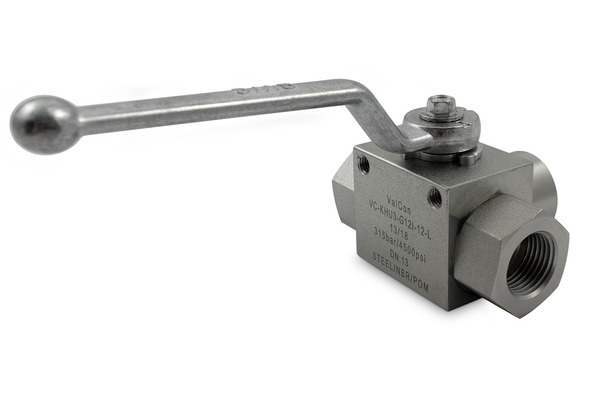

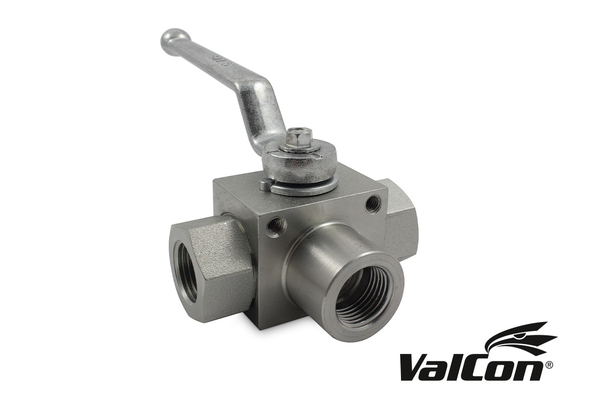

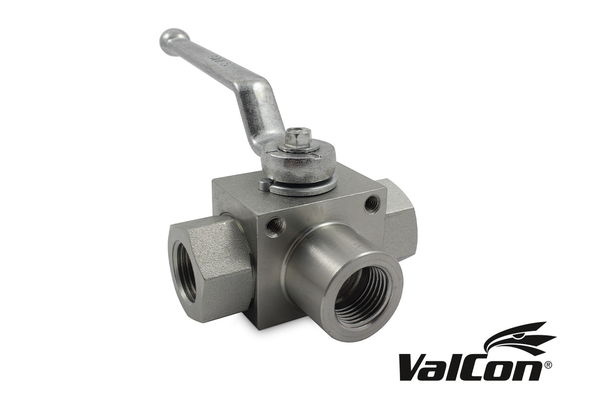

Valcon® directional ball valve (BSP)

Similar image
Similar image
Similar image
Similar image

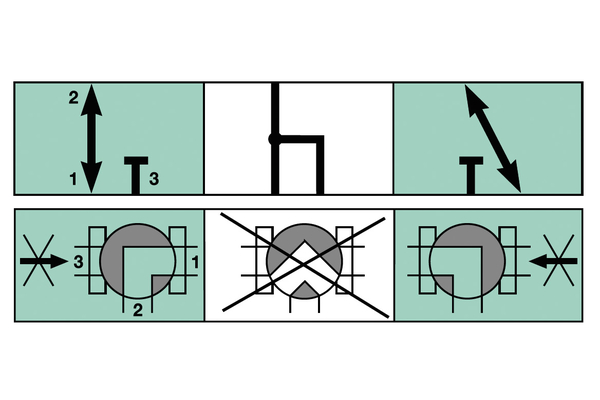

3/2-way version

To accessories

Detail

Art. No.
VC-KHU3-G14I-6-L
%
SALE
VC-KHU3-G38I-10-L
%
SALE
VC-KHU3-G12I-12-L
%
SALE
VC-KHU3-G34I-20-L
%
SALE
VC-KHU3-G1I-25-L
%
SALE
DN
6
10
12
20
25
working pressure [bar]
315
315
315
315
315
Thread + standard
Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
Thread [GA]
1/4"
3/8"
1/2"
3/4"
1"

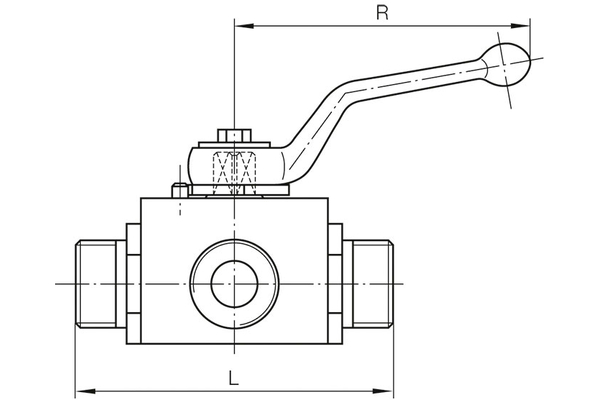

L [mm]
69,0
72,0
83,0
95,0
113,0
Lever length [R] [mm]
108,0
108,0
108,0
170,0
170,0
B [mm]
28,0
32,0
35,0
48,0
57,0
H [mm]
32,0
40,0
40,0
57,0
64,0
Quantity


Product info

  • Technical data
    Material Casing: Steel
    Material switching ball sealing: POM
    Material switching shaft: steel
    Material switching shaft sealing: NBR

Benefit

Equipped with mounting holes for panel constructions.

Practical tip

Please do not use the ball valve in case of residual pressure.
