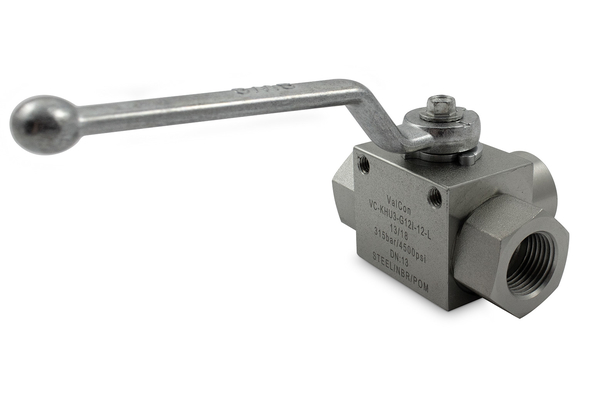

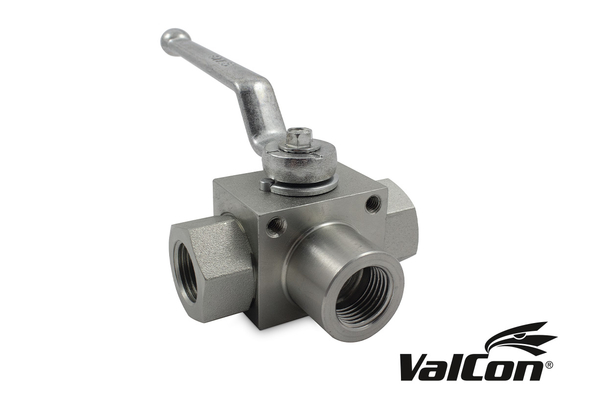

VC-KHU3-G14I-6-L
Valcon® Directional ball valve

Product info

• Technical data

  DN:	6
  working pressure [bar]:	315
  Thread + standard:	Whitworth-Pipe thread - female thread (BSP), DIN EN ISO 228-1
  Thread [GA]:	1/4"

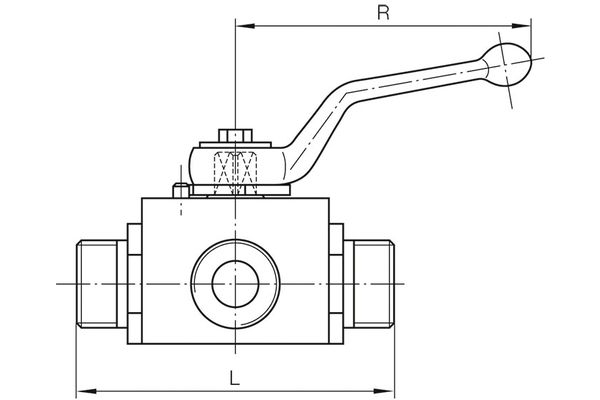

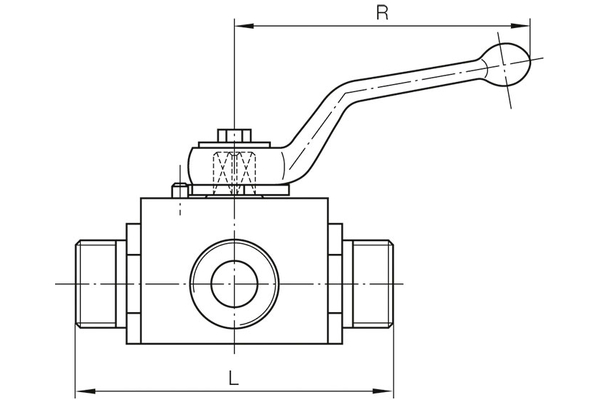

  L [mm]:	69,0
  Lever length [R] [mm]:	108,0
  B [mm]:	28,0
  H [mm]:	32,0
  Material Casing:	Steel
  Material switching ball sealing:	POM
  Material switching shaft:	steel
  Material switching shaft sealing:	NBR

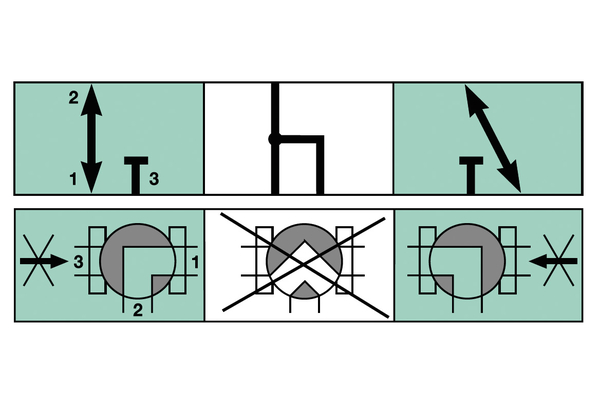

  Product title short:	Directional ball valve 3/2-ways
