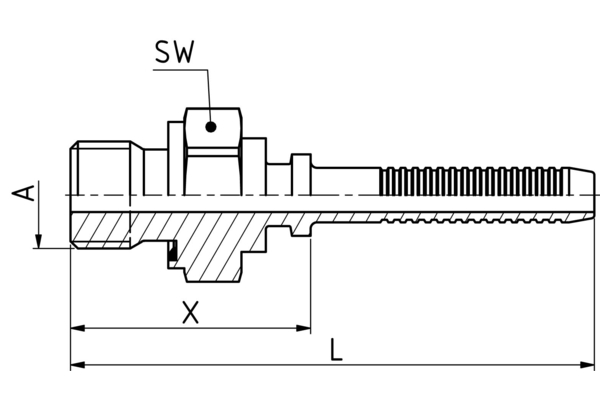

Male thread BSP with profile gasket (XJ)

Similar image
Similar image

BSP male thread with profile gasket similar to DIN 3852 A

To accessories

Detail

Art. No.
XJ04BMER02
%
SALE
XJ04BMER04
%
SALE
DN
04
06
Size
02
04
Inch
1/8
1/4
Thread + standard
BSP male thread with profile gasket similar to DIN 3852 A
BSP male thread with profile gasket similar to DIN 3852 A
Connection thread A
G1/4"
G1/4"
X [mm]
30,3
29,3
L1 [mm]
58,9
64,1
SW1 [mm]
19
19
Quantity


Product info

  • Technical data
    Connection name Indunorm: BMER
    Connection type: AG
    Material: Free cutting steel
    Material O-Ring: NBR
    Resistance against red rust [h]: 144
    Resistance against white rust [h]: 72
    Surface: galvanised and Cr III passivated
    Type of fittings: 700 bar hydraulic tool series XJ

Practical tip

Easy identification of the threaded connections with the identification panel AW5-40. The plastic caps XK .. protect against dirt and damage.
