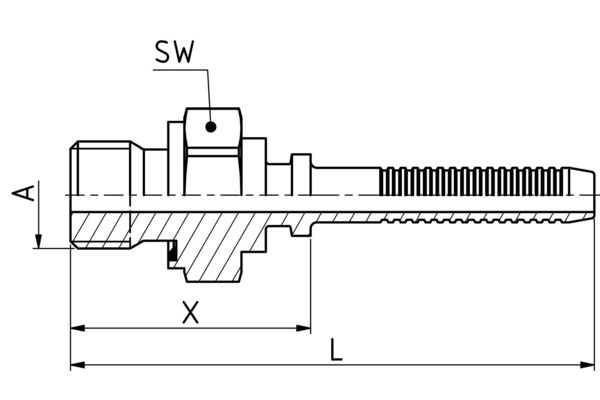

XJ04BMER02
AG BMER

Product info

• Technical data

  DN:	04
  Size:	02
  Inch:	1/8
  Thread + standard:	BSP male thread with profile gasket similar to DIN 3852 A
  Connection thread A:	G1/4"
  X [mm]:	30,3
  L1 [mm]:	58,9
  SW1 [mm]:	19
  Connection name Indunorm:	BMER
  Connection type:	AG
  Material:	Free cutting steel
  Material O-Ring:	NBR
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	700 bar hydraulic tool series XJ
